Edit Mode lets you modify your page directly in the Live Preview. You can edit text, insert new elements, rearrange them with drag and drop, swap images, edit links, and much more.
Phoenix Code updates your source code automatically as you make changes.

Enabling Edit Mode​

To switch to Edit Mode, click the pen icon in the Live Preview toolbar. This enables full interactivity in the Live Preview.

When enabled, the pen icon is highlighted in orange color.

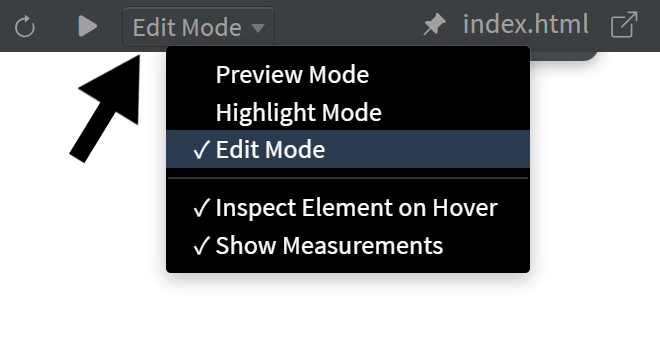

Live Preview Edit mode

Alternatively, you can switch to Edit Mode by updating the livePreviewMode setting in the preferences file. See Editing Preferences to learn how to edit the preferences file.

Control Box​

When you click an element in the Live Preview, a Control Box appears near it. This floating panel shows you what the element is and gives you tools to edit it.

Control Box

The Control Box is shown only for editable elements. It is not shown for non-editable elements that are dynamically created by JavaScript.

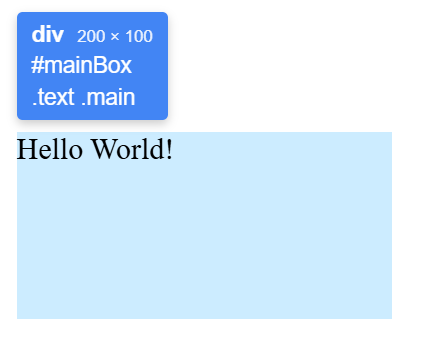

Element Info​

The left side of the Control Box displays information about the selected element:

  • Tag name: The element type (for example, div, p, img)
  • ID: The element’s ID attribute (if present), shown with a # prefix
  • Dimensions: The element’s size in pixels (width × height)
  • CSS classes: The element’s classes, shown with a . prefix. If the element has more than three classes, only the first three are shown, followed by a “+N more” indicator

Element Properties panel

Clicking on the info section opens the Element Properties editor, where you can edit the element’s tag name, classes, and ID.

Select Parent​

The Select Parent button (up-arrow icon) appears next to the info section. Clicking it selects the parent of the currently selected element.

Select Parent button

This button appears only when a valid parent exists. It is not shown when the parent is body, html, or a JavaScript-rendered element.

Tools​

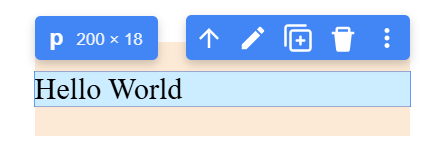

The right side of the Control Box displays a set of tools you can use to modify the selected element. The available tools depend on the element type. Some buttons are shown for all elements, while others appear only for specific element types.

Tools section

  • Insert Element (plus icon): Opens a panel where you can insert a new HTML element before, after, or inside the selected element.
    This option is available for all elements.
    See the Insert Element section for more details.

  • Edit Hyperlink (chain icon): Opens a panel that lets you edit the element’s href attribute.
    This button appears only for <a> elements.
    See the Edit Hyperlink section for more details.

  • Change Image (image icon): Opens an image gallery at the bottom of the Live Preview, where you can browse and select an image. You can also choose an image from your computer. Phoenix Code automatically saves the image to your project folder and updates the src attribute of the element.
    This button appears only for <img> elements.
    See Image Gallery for more details.

  • Edit Text (pen icon): Opens inline text editing for the selected element. You can edit text directly in the Live Preview, and Phoenix Code automatically updates the source code.
    This button appears only for elements that can contain text (it is not available for <img>, <video>, <br>, etc.).
    See the Inline Text Editing section for more details.

  • Duplicate (copy icon): Copies the selected element and places it below. You can also duplicate elements using Ctrl/Cmd + D after clicking an element.
    This option is available for all elements.

  • Delete (trash icon): Deletes the selected element. You can also delete elements using the Delete key after clicking an element.
    This option is available for all elements.

  • More Options (three-dots icon): Opens a menu with additional actions. You can also open this menu by right-clicking anywhere in the Live Preview, but only in Edit Mode.
    This option is available for all elements.
    See Cut, Copy, and Paste for more details.

Hover Box​

The Hover Box is a small tooltip that appears when you hover over an element in Edit Mode. It shows an icon and a label that describe the element type (for example, “Image”, “Button”, “Container”, “Paragraph”).

Hover Box

The Hover Box helps you quickly identify elements as you move your cursor over the page, without needing to click on them.

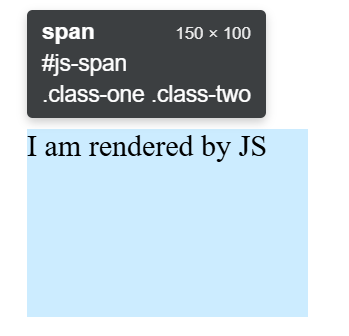

The Hover Box uses a different color for editable and non-editable elements. Standard HTML elements appear in blue, while dynamically created (JavaScript-rendered) elements appear in gray.

Inspect Element on Hover​

By default, in Edit Mode, hovering over elements in the Live Preview highlights them and displays the Hover Box. You can change this behavior to show highlights only when you click elements instead.

To toggle this setting, click the chevron icon next to the pen icon in the Live Preview toolbar and unselect Inspect Element on Hover. By default, this option remains checked.

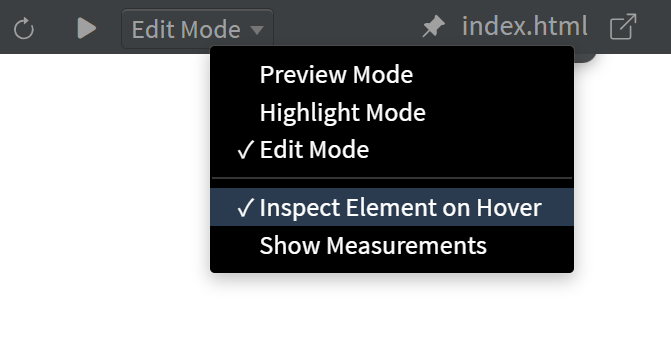

Inspect Element on Hover

Alternatively, you can change this setting by updating the livePreviewInspectElement preference in the preferences file. Set it to "hover" (default) or "click".
See Editing Preferences to learn how to edit the preferences file.

Edit Element Properties​

The Element Properties panel lets you edit an element's tag name, ID, classes, and other HTML attributes directly from the Live Preview. All changes are synced to your source code in real-time, and code hints appear as you type to help you pick the right values.

To open the panel, click on the info section (the left side showing the tag name, ID, and dimensions) of the Control Box.

Element Properties panel

The panel has four sections:

  • Tag: Change the element type (for example, turn a div into a section). You can type directly or click the dropdown arrow to browse a list of common HTML tags.
  • ID: Change or remove the element's ID.
  • Classes: Existing classes are shown as chips with a × button to remove them. Click + to add new classes. You can type multiple class names separated by spaces.
  • Attributes: All other HTML attributes are shown as editable name-value pairs. Click + to add a new attribute, or × to remove one.

To undo all changes made in the panel, click the Reset button in the panel header. This reverts the element to the state it was in when you first opened the panel.

Insert Element​

The Insert Element panel lets you add new HTML elements to your page directly from the Live Preview.

To open the panel, click the Insert Element button (plus icon) in the Control Box.

Insert Element panel

Choosing a Position​

At the top of the panel, four position buttons control where the new element will be placed relative to the selected element:

  • Before: Inserts the new element immediately before the selected element
  • After (selected by default): Inserts the new element immediately after the selected element
  • Inside: Inserts the new element as the last child of the selected element
  • Wrap: Wraps the selected element inside the new element

The Inside option is disabled for void elements (like <img> or <br>) since they cannot have children. The Wrap option only shows container elements (like <div>, <section>, <form>, etc.).

Picking an Element​

The panel shows a grid of commonly used HTML elements like Paragraph, Heading, Link, Image, Button, Div, List, Form, and many more. Each item shows the element name and its HTML tag. Click an item to insert it.

Use the search bar at the top to filter elements by name or tag. If no matching element exists, you can type any valid HTML tag name and click Create <tag> to insert a custom element.

Create custom element

After inserting an element, Phoenix Code automatically selects it in the Live Preview so you can continue editing it.

Inline Text Editing​

The Inline Text Editing feature lets you modify text content directly in the Live Preview, with all changes automatically synced to the source code.

To start editing, double-click an element in the Live Preview or click the Edit Text button (pen icon) in the Control Box.
Edit the text as needed, then press Enter to save or Esc to cancel.
To insert a line break, press Shift + Enter.

Text editing is available only for elements that can contain text. It is not supported for elements such as <img>, <video>, <br>, and similar non-text elements.

Formatting Toolbar​

When you start editing text, a Formatting Toolbar appears near the element. It gives you quick access to common text formatting options.

Formatting Toolbar

Select the text you want to format and click a formatting button, or use the keyboard shortcut. If no text is selected, the formatting is applied to the entire element. Clicking a format that is already applied removes it.

The toolbar shows three primary formatting buttons:

  • Bold (Ctrl/Cmd + B): <b> tag
  • Italic (Ctrl/Cmd + I): <i> tag
  • Underline (Ctrl/Cmd + U): <u> tag

More Formatting Options​

Click the More button (three-dots icon) on the right side of the toolbar to see additional formatting options:

  • Strikethrough: <s> tag
  • Subscript: <sub> tag
  • Superscript: <sup> tag
  • Code: <code> tag

More formatting options

Drag and Drop​

The Drag and Drop feature lets you reposition elements in the Live Preview by dragging them to a new location. The source code is automatically updated with the new structure when you drop the element.

To drag an element: click and hold the element, then move your mouse to the desired location. The element becomes semi-transparent while dragging. As you hover over potential drop targets, Phoenix Code displays visual indicators showing where the element will be placed.

Visual Indicators​

  • Arrow markers to indicate the drop position:

    • Up (↑) or Down (↓) arrows: Places the element before or after the target element
    • Left (←) or Right (→) arrows: Places the element before or after the target element (appears for flex row layouts)
    • ⊕ symbol with a dashed border: Places the element inside the target as a child

  • Target label: A small box next to the marker displays the target element's tag name, ID, and classes

When multiple drop targets overlap (for example, an img inside a div with aligned edges), you can scroll slightly to cycle through targets and drop the element when the correct label appears.

Phoenix Code validates drops to prevent invalid HTML structure. For example, list items can only be placed inside list containers, and block elements cannot be placed inside inline elements. If a drop location is invalid, Phoenix Code shows the marker for the closest valid drop target. In some cases, when no valid drop target is found, Phoenix Code won't show any indicators.

To cancel a drag, press Esc.

When you drag an element near the top or bottom edge of the viewport, the Live Preview automatically scrolls in that direction.

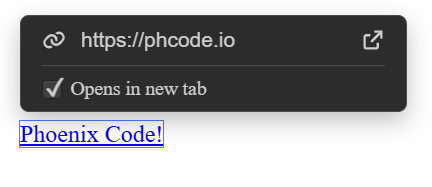

The Edit Hyperlink feature lets you modify the URL and behavior of anchor (<a>) elements directly in the Live Preview.

To edit a hyperlink, select an <a> element and click the Edit Hyperlink button (chain icon) in the Control Box. A panel appears near the element with the following options:

  • URL input: Edit the link's destination (href attribute). Press Enter to save your changes or Esc to cancel.
  • Opens in new tab: Toggle this option to make the link open in a new tab. This adds target="_blank" in your source code.
  • Open this link: Opens the URL in your default browser. This option is available only in desktop apps.

Cut, Copy, and Paste​

You can cut, copy, and paste elements in Edit Mode using standard keyboard shortcuts or the Control Box More Options menu (three-dots icon).

Using Keyboard Shortcuts​

When you click an element in the Live Preview, keyboard focus moves to the Live Preview. You can then use:

  • Ctrl/Cmd + X: Cut the selected element
  • Ctrl/Cmd + C: Copy the selected element
  • Ctrl/Cmd + V: Paste the copied or cut element below the currently selected element

Using the More Options Menu​

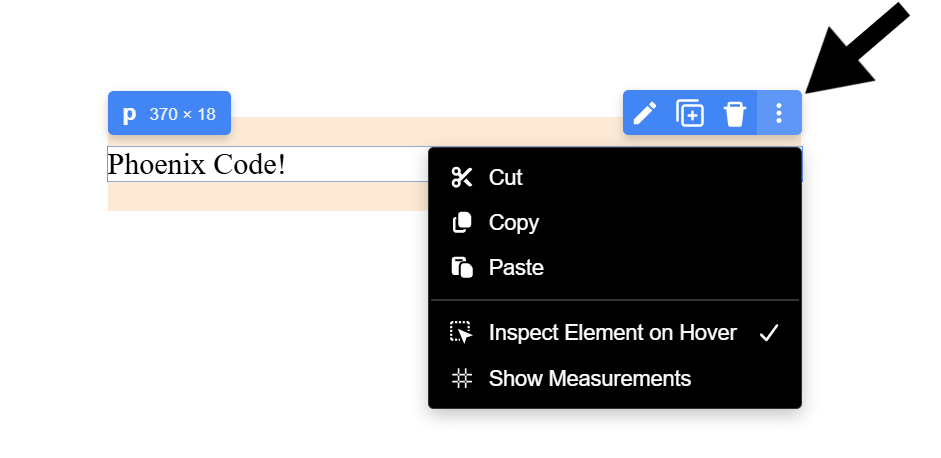

More Options dropdown

Click the More Options button (three-dots icon) in the Control Box and select Cut, Copy, or Paste from the dropdown menu.

Keyboard shortcuts apply to elements only when focus is in the Live Preview. When editing source code, the shortcuts affect the code instead.

Undo and Redo​

You can undo and redo changes made in Edit Mode using keyboard shortcuts:

  • Ctrl/Cmd + Z: Undo the last change
  • Ctrl/Cmd + Y or Ctrl/Cmd + Shift + Z: Redo the last undone change

These shortcuts work for all Edit Mode operations, including text edits, element moves, deletions, and other modifications.

Quick Preview Toggle​

note

The Quick Preview Toggle button is available only in the popped-out Live Preview window.

A Quick Preview Toggle button is available at the top center of the popped-out Live Preview window. It lets you quickly switch to Preview Mode and back to the previously selected mode (Highlight Mode or Edit Mode). You can also use the F8 keyboard shortcut to toggle Preview Mode.

The button is partially visible as a thin strip at the top edge of the Live Preview. Moving your cursor over this strip reveals the full button, which you can click to toggle Preview Mode.

Disabling Edit Mode for Specific Elements​

If you have interactive elements (like navigation menus, modals, or carousels) that need to respond to clicks normally, you can exclude them from Edit Mode behavior.

Add the phcode-no-lp-edit class to any element you want to behave normally:

<div class="phcode-no-lp-edit">
    <!-- Clicks and interactions inside this element work normally -->
</div>

When an element has this class, the element behaves as if you're in Preview Mode.

This also applies to all child elements inside the marked element.

If you want only to exclude the particular element and not its children, use the class phcode-no-lp-edit-this.

Placing your cursor on the element in the source code will still highlight it in the Live Preview. To use edit features, click the element directly in the Live Preview.
